FICHE TECHNIQUE
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
Mode switch
DIST knob
EQUALIZER MIDDLE/MID FREQ knob
EQUALIZER HIGH/LOW knob
LEVEL knob
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
35 mA
Expected battery life under continuous use
Alkaline: Approx. 18 hours
Carbon: Approx. 7 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Option (sold separately)

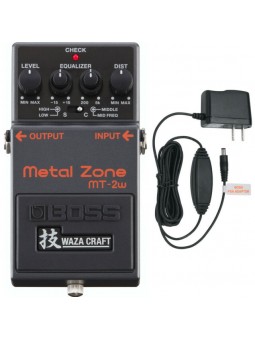

AC adaptor: PSA series
DIMENSIONS ET POIDS
Largeur
73 mm
Profondeur
129 mm
Hauteur
59 mm
Poids
440 g

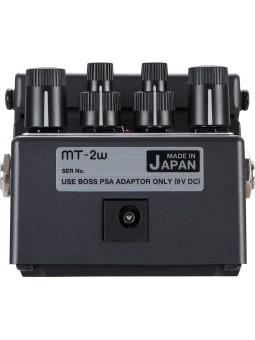

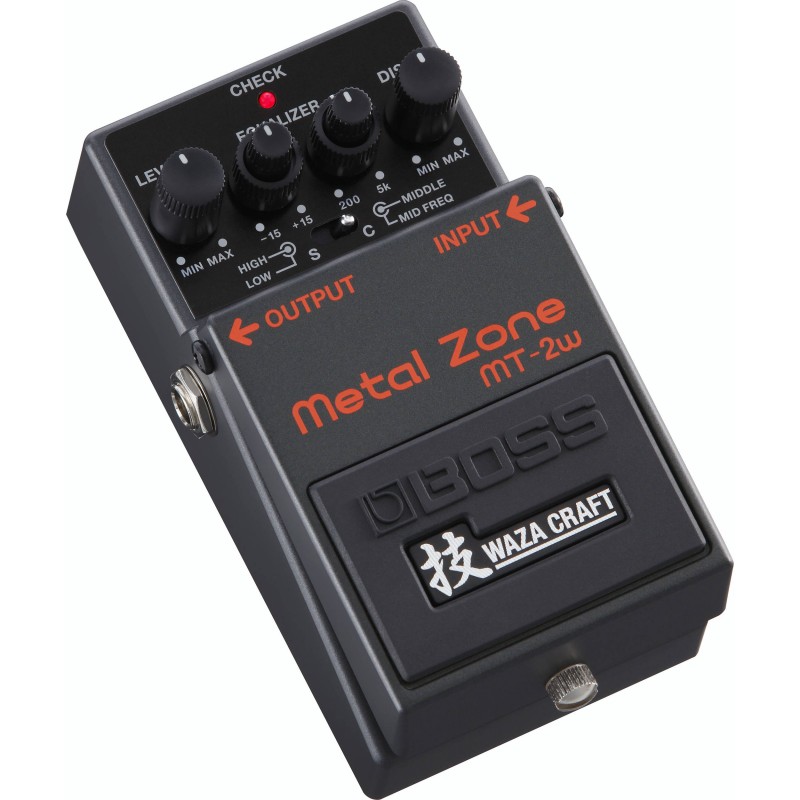

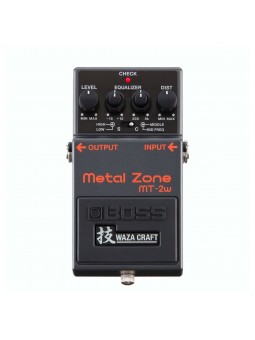

Boss MT-2W Metal Zone
Fiche technique
- Catégories d'effets
- Distorsions / Overdrives / Fuzz
