FICHE TECHNIQUE
Sampling Frequency
96 kHz
AD Conversion
32 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
32 bits
Effects
116 types
Patches
250 (User) + 250 (Preset)
Phrase Loop
38 sec. (MONO)
19 sec. (STEREO)
Tuner Internal Detection
+/-0.1 cent
Nominal Input Level
INPUT: -10 dBu)
RETURN1: -10 dBu)
RETURN2: -10 dBu
Maximum Input Level
INPUT: +18 dBu
RETURN1: +8 dBu
RETURN2: +8 dBu
Input Impedance
INPUT: 1 M ohm
RETURN1: 1 M ohm
RETURN2: 1 M ohm
Nominal Output Level
MAIN OUTPUT (L/MONO, R): -10 dBu
SUB OUTPUT (L, R): +4 dBu
PHONES: -10 dBu
SEND1: -10 dBu
SEND2: -10 dBu
Output Impedance
MAIN OUTPUT (L/MONO, R): 1 k ohm
SUB OUTPUT (L, R): 600 ohms
PHONES: 20 ohms
SEND1: 1 k ohm
SEND2: 1 k ohm
Recommended Load Impedance
MAIN OUTPUT (L/MONO, R): 10 k ohms or greater
SUB OUTPUT (L, R): 600 ohms or greater
PHONES: 44 ohms or greater
SEND1: 10 k ohms or greater
SEND2: 10 k ohms or greater
Controls
DOWN switch, UP switch CTL1--3 switches, 1--5 switches, POWER switch
EFFECT button, MENU button, EXIT button, WRITE button, PAGE button
1--6 knobs, OUTPUT LEVEL knob
Expression pedal
Display

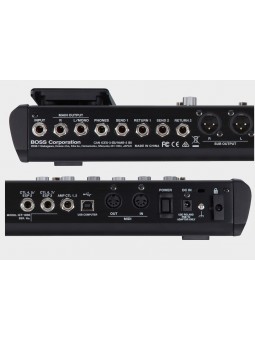

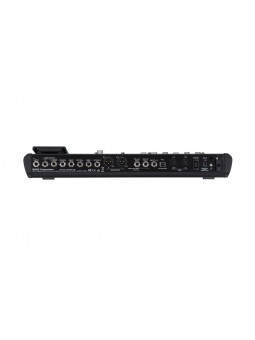

INPUT jack, MAIN OUTPUT (L/MONO, R) jacks, SEND1 jack, RETURN1 jack, SEND2 jack, RETURN2 jack: 1/4-inch phone type
SUB OUTPUT (L, R) connectors: XLR type
PHONES jack: Stereo 1/4-inch phone type
CTL4, 5/EXP2 jack, CTL6, 7/EXP3 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
USB COMPUTER port: USB B type
DC IN jack
MIDI (IN, OUT) connectors
Power Supply
AC adaptor
Current Draw
1.2 A
Accessories
AC Adaptor
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Options (sold separately)
Footswitch: FS-5U, FS-5L, FS-6, FS-7 Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
DIMENSIONS ET POIDS
Width
462 mm
Depth
248 mm
Height
70 mm
Maximum height
95 g
Weight (including battery)
3.6 kg
